Concrete pan mixer

Classification:

Concrete Batching&Mixing Plant

Related products
Get Quote
  • Product Description
  • Project
    • Commodity name: Concrete pan mixer

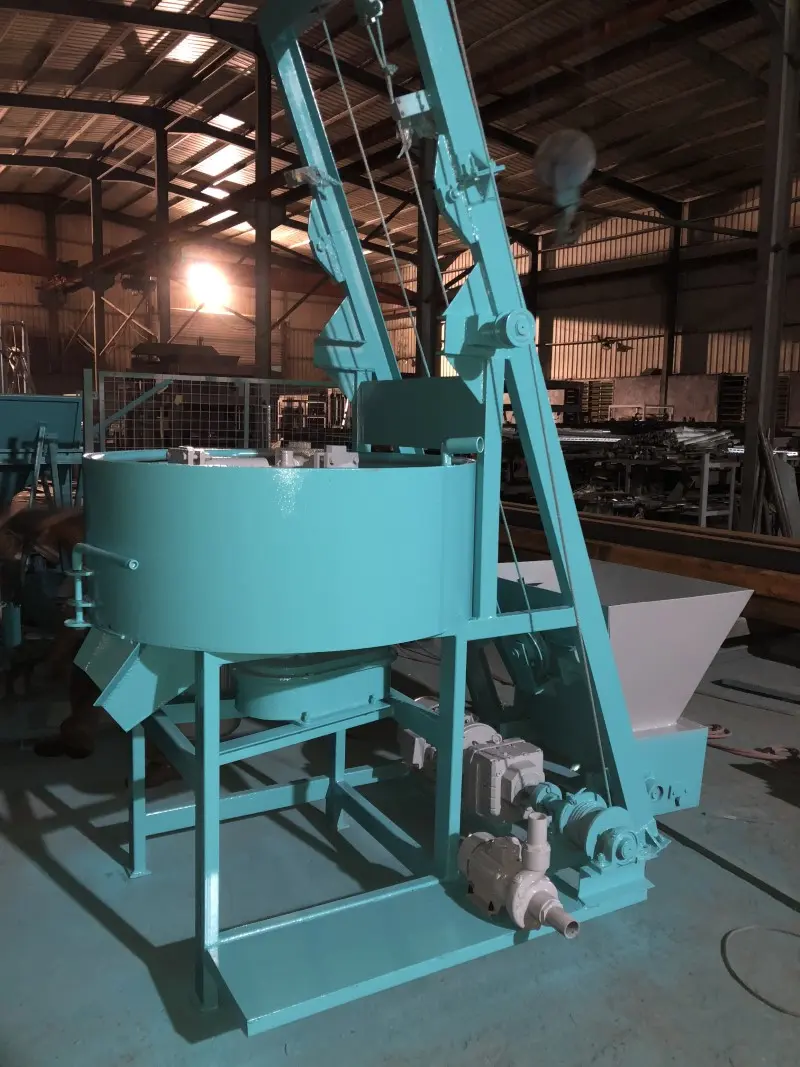

    Concrete pan mixer is mainly composed of mixing drum, feeding and discharging mechanism, water supply system, motor, transmission mechanism, rack and supporting device etc. It has the advantages of stable operation, low energy consumption, compact structure, reliable transmission, light weight, considering some customers have limited investment and small working space at beginning, this can be used for various material like harsh concrete, light weight aggregate, plastic concrete and also concrete fly ash blocks.



    Techinical specification:

    Model JN500 JN350
    Input capacity 800L 560L
    Output capacity 500L      350L
    Productivity ≥12m³/h     ≥6m³/h
    Max aggregate diameter 60/40mm     40mm
    Mixing blade Rotating speed 28r/min     21r/min
    Quantity 4       4
    Power 10.5kW      5.5kW
    Dimension Φ1300×1410 mm   Φ1200×1410 mm
    Weight 1480kg      650kg
