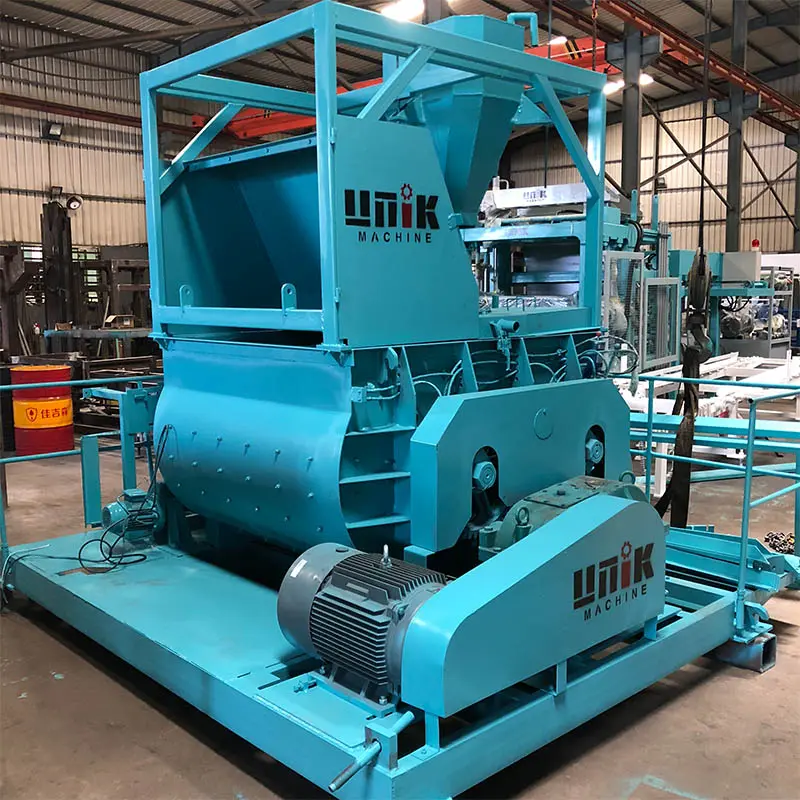

JS Compulsory Mixer

Classification:

Concrete Batching&Mixing Plant

Related products
Get Quote
  • Product Description
  • Project
    • Commodity name: JS Compulsory Mixer

    The compulsory mixer is mainly composed of two horizontally arranged circular groove-shaped mixing drums, two mixing shafts that rotate in opposite directions, and a rotating mechanism. Several groups of mixing blades are installed on the two shafts,the mixture is mixed alternately in two mixing drums. On the one hand, the mixture at the bottom and the middle of the mixing drum is turned upward, and on the other hand, the mixture is pushed forward and backward along the axis, Thus, the mixture can be done quickly and evenly.



    Techinical specification:

    Model No JS500 JS750 JS1000 JS1500 JS2000
    Rated discharging volume 500L 750L 1000L 1500L 2000L
    Rated feeding volume 800L 1200L 1600L 2400L 3200L
    Rated productivity ≥25m3/h ≥37.5m3/h ≥50m3/h ≥75m3/h ≥100m3/h
    Aggregate maximum diameter(mm) 80/60 80/60 80/60 80/60 80/60
    Mixing blade Rotating speed 35r/min 31r/min 25.5r/min 25.5r/min 23r/min
    Quantity 2×7 2×7 2×8 2×10 2×9
    Mixing motor Model No Y180M-4 Y200L-4 Y225S-4 Y225M-4 Y280S-4
    Power 18.5kw 30kw 37kw 45kw 75kw
    Winch motor Model No YEZ1325-4-B5 YEZ132M-4-B5 YEZ160S-4 YEZ180L-4 YEJ180L-4
      Power 5.5KW 7.5KW 11KW 18.5KW 22KW
    Water pump Model No 50DWB20.8A 65DWB35.8A KQW65.100I KQW65.100I CK65/20L
    Power 750W 1.1KW 3KW 3KW 4KW
    Hopper lifting speed 18m/min 18m/min 21.9m/min 23m/min 26.8m/min
    Dimension transportation 3050× 2300× 2680mm 3650× 2600× 2890mm 4640× 2250× 2250mm 5068× 2250× 2440mm 5680× 2250× 2735mm
      Working status 4461× 3050× 5225mm 4951× 3650× 6225mm 8765× 3436× 9540mm 9645× 3436× 9700mm 10720× 3870× 10726mm
    Weight 4000kg 5500kg 8700kg 11130kg 15000kg
    Discharging height 1500mm 1600mm 2700/ 3800mm 3800mm 3800mm
